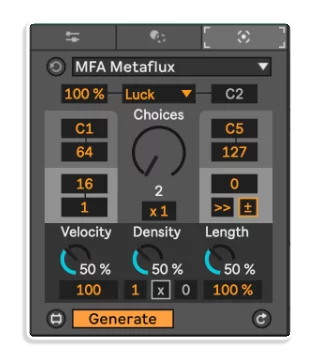

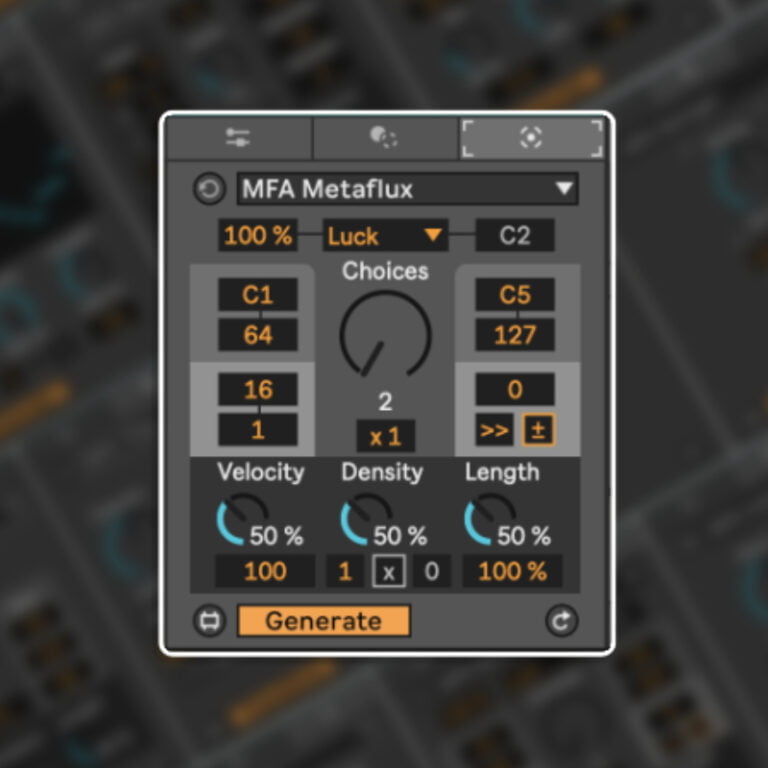

Up top we find the chance of randomisation, the randomisation alsorithm applied, and the base pitch of non-randomised notes when note randomisation is below 100%. In the centre, the large dial offers the algorithm-based chance parameter; with Luck enabled, there are currently 48  note choices available in the selected pitch range between C1 and C5, and will be output in the current scale and key. Below this we can specify the number of voices for chord generation.

At upper left, we have the minimum pitch and velocity output, and at upper right, the maximum pitch and velocity output. If desired all output can be constrained to specific rhythms via Euclidean options in the lighter coloured on the sides below the ranges: at left, the total number of steps at the current grid count, and the numbers of those that will be filled; at right, step fill pattern rotation, direction, and inversion.

The dials below the bottom govern the chance of velocity randomising with the default velocity set below, density of notes in the pattern, and note length, with base grid percentage as the default length set below. Velocity and lengthare calculated per-step rather than per-note. Between the base velocity and length values, you find our new count masking : set which notes will be output by count, offset the count start, or invert the count pattern.
