Bandswitch

Multiband processor and polyrhythmic delay

£10.00

Bandswitch is an audio effect that splits the incoming signal into three bands and processes them independently:
  • You can modulate the amplitude (tremolo) or the panning position of each band. You can also modify the shape of the modulation and set the gain and an overdrive process independently. Moreover, you can also add a vibrato (pitch modulation) independent for each band.
  • The modulation rate can be modulated in turn by an LFO (there are, of course, three LFOs), and there are also two dedicated LFOs that can modulate the cross frequencies between the bands.
  • After the Modulation/Distortion/Pitchshifing stage, each band goes to a dedicated delay line with feedback for further processing. Also the delay time can be dynamically modulated.
Developer: Amazing Noises
Compatibility: Ableton Live 11 Suite or Ableton Live Standard with MaxforLive | Ableton Live 10 Suite or Ableton Live Standard with MaxforLive
OS: Mac & Windows
Min. Requirements: MaxforLive is Essential

Description

Bandswitch is an audio effect that splits the incoming signal into three bands and processes them independently:

  • You can modulate the amplitude (tremolo) or the panning position of each band. You can also modify the shape of the modulation and set the gain and an overdrive process independently. Moreover, you can also add a vibrato (pitch modulation) independent for each band.
  • The modulation rate can be modulated in turn by an LFO (there are, of course, three LFOs), and there are also two dedicated LFOs that can modulate the cross frequencies between the bands.
  • After the Modulation/Distortion/Pitchshifing stage, each band goes to a dedicated delay line with feedback for further processing. Also the delay time can be dynamically modulated.

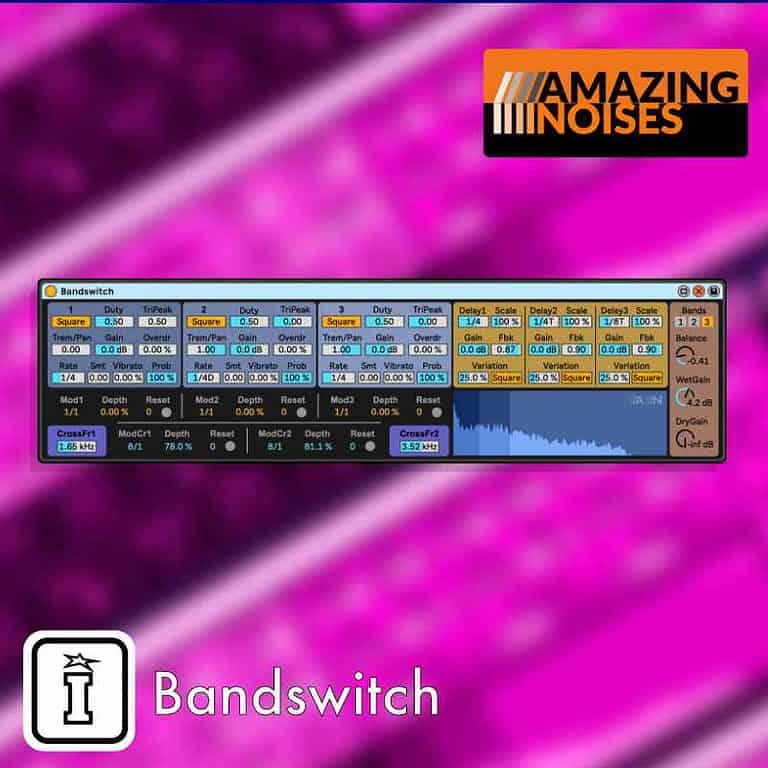

BANDSWITCH CONTROLS – SWITCHER PANELS

The main processor for each band is a Tremolo/Pan/Vibrato effect. Here are the parameters:

  • Shape: the tremolo and panning effects can follow a square or triangular shape
  • Duty: the width of the shape for each cycle
  • TriPeak: sets the vertex of the triangular shape
  • Trem/Pan: Tremolo Panning amount. Positive values (0/1) for panning, negative values (-1/0) for tremolo.
  • Gain: band volume
  • Overdr: band distortion
  • Rate: Tremolo/Panning/Vibrato rate in note values Smt: Tremolo/Panning/Vibrato smoothing factor Vibrato: Vibrato (pitch modulation) amount
  • Prob: Tremolo/Panning/Vibrato probability

CROSS FREQUENCIES AND MODULATORS

CrossFr1 and CrossFr2: The two parameters in the purple panels set the cross frequencies between the bands

There are three LFO modulators for the Tremolo/Pan/Vibrato rate of each band, and two for the cross frequencies; here are the parameters:

  • Mod: Modulator rate un note values
  • Depth: Depth of the modulation in percentage
  • Reset: Period in measures for the LFO phase reset, a value of 0 means no periodic reset
  • Reset Button: you can also reset the LFO phase by clicking on the Reset Button, or you can automate it

DELAY PARAMETERS

There is a modulated feedback delay line for each band, here are the parameters:

  • Delay: Delay time in note values
  • Scale: rescales the delay time by a percentage. Very useful to create irregular delays and change the rhythmic groove of the sound
  • Gain: delay gain
  • Fbk: Feedback factor. Positive values produce a regular feedback, negative values send the feedback signal to the next delay line: i.e. delay1 -> delay2, delay2 -> delay3, delay3 ->delay1.
  • Variation: a cyclic variation, in percentage, of the delay length. F.i. if the delay time is 1/4 and the variation id 50%, the actual delay length goes from 1/8 to 3/8 (i.e 1/4-1/8 and 1/4+1/8). This generates unique polyrhythmic patterns, impossible to obtain with regular delays. The variation shape can be a square (which switches between two values) or a sinusoid (which continuously warps the delay time, yielding a sort of granulation effect).

GLOBAL PARAMETERS

  • Bands: you can switch between 1, 2 or 3 bands
  • Balance: spreads the bands in the stereo field: positive values move the highest band to the right and the lowest to the left, while the middle band remains centred. Negative values do the opposite.
  • WetGain: gain of the processed sound
  • DryGain: gain of the un-processed sound



Reviews

There are no reviews yet.

Be the first to review “Bandswitch”

CHANGE LOG

Version 1 Released 5th April 2022
  • initial release

REVIEWS & FEATURES



INSTALLATION

Our Products are generally provided as Zip file downloads which in all cases will need to be extracted and saved to your hard drive prior to installation. Details on the different file type provided and what to do with them are below.

.alp Files – These are Ableton Live Packs and will install directly into the Packs Section of the browser of Ableton Live. When you double click on them you will see a pop up window asking you to confirm that installation is ok as the files are described as “Legacy”. This is fine and you are ok to proceed, the packs are created using the format for an earlier version of Live and so remain compatible with the current version.

.amxd files – These are individual MaxforLive Devices and can be stored anywhere on your hard drive. We’d advise creating a folder for them and then adding that folder as a location within the Places section of Lives Browser.

Control Surface Scripts – Please refer to the individual User Guides provided with your download, an abridged version of the installation will be shown further down this page.

ClyphX Pro – Please refer directly to the manual and installation video for this specific product.

Novation Circuit Packs – These are provided as individual Sysex Files and as a complete bank file. All are to be installed using a version of the Circuit Editor and not via Novations Components back up utility.

DEVELOPER

Amazing Noises

Amazing Noises is the brainchild of Maurizio Giri the co-author of the Max Bible, Electronic Music & Sound Design. As one of the core originators of MaxforLive devices it’s an honour to now include him within the Isotonik Collective and we’re looking forwards to bringing you more from his talented mind!
