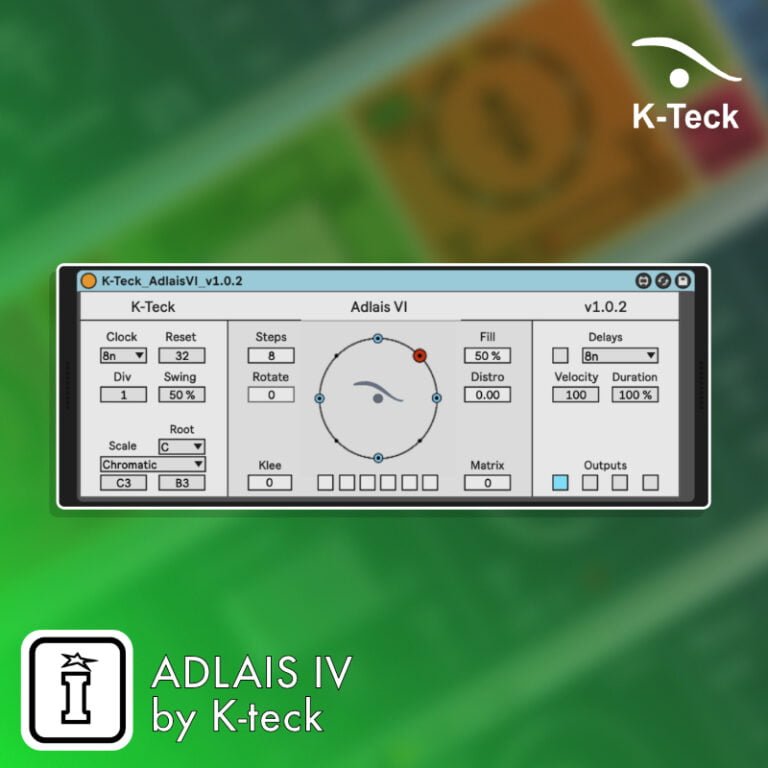

Adlais VI by K-teck

Features:

• Euclidean Trigger Sequencer with ability to re-distribute triggers
• Scale Scanning Module – a non-random way to select notes
• 6 stage Klee Sequencer
• Poly Mode Shift Registers – create strums and delayed note patterns

Your ‘go to’ for:

• Chord progressions.
• Strummed chords.
• Melodic phrases
• Bass lines
• Rhythmic patterns

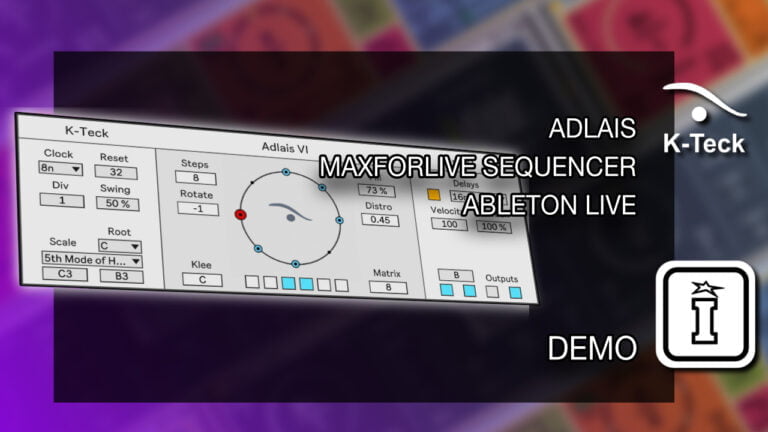

Don’t be fooled by the simple interface, Adlais is an extremely powerful MaxforLive Sequencer for Ableton Live

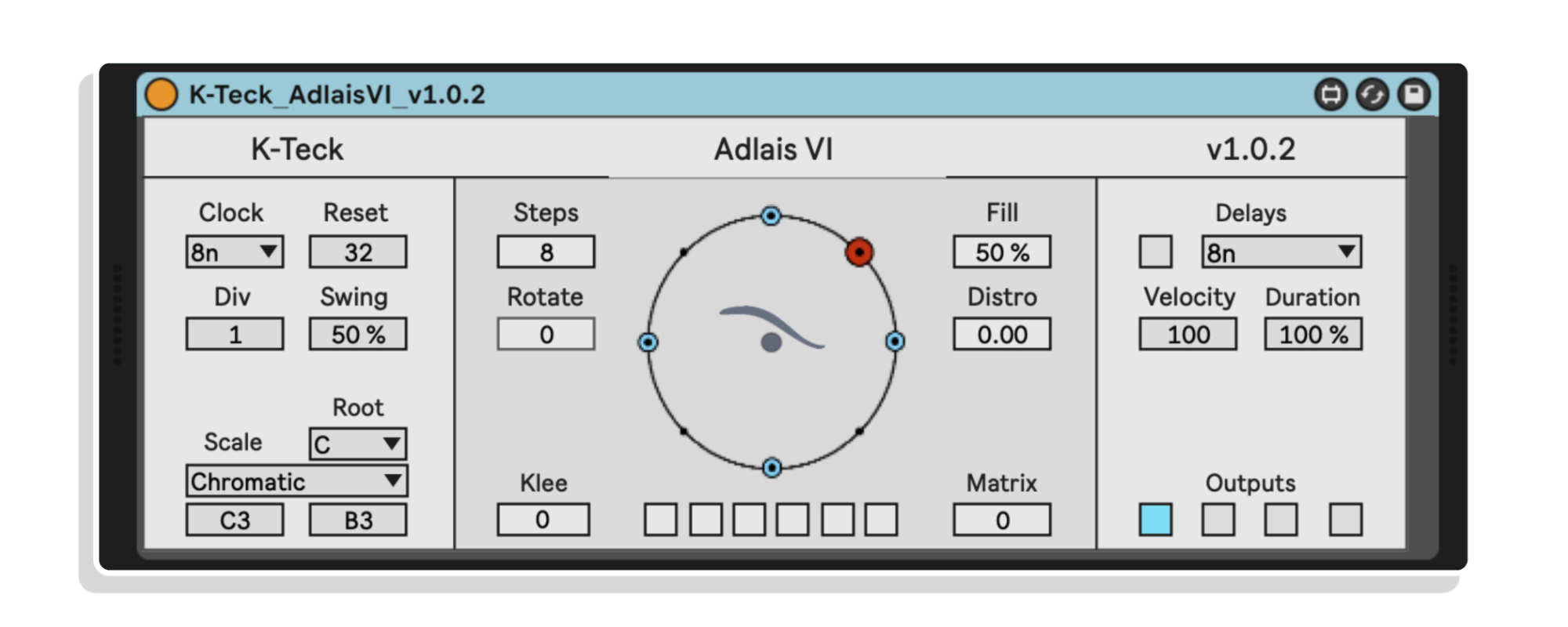

ADLAIS CONTROLS:

• Clock: Clock 64n – 1nd – Sets clock pulse rate as a division of Live’s tempo
• Clock Divider: 1 – 32 – Divides the Clock outpuActs like a multiplier so 1n * 16 = 16 bars per step
• Global Reset: 1 – 128 – Resets ALL clocks, counters etc. to ZERO after nSteps
• Swing: 50 – 75% – Classic drum machine type swing, Offsets every 2nd beat
• Scale_Root: Sets the root note of the chosen scale
• Scale: Menu 1 – 20 – Select the Musical Scale for the Scale Scan Module to scan through. This is not a quantizer
• Pitch_Min: 0-127 – Select Lowest Note played irrespective of Root
• Pitch_Max: 0-127 – Select highest note played.
  • Is an interval above Range_Min
  • When Range_Min is changed Range_Max will follow – keeping the interval constant
• #Steps: Number of steps in euclidean sequence
• Fill: Percentage of #Steps output triggers
• Rotate: Rotates the euclidean trigger sequence clockwise or anti-clockwise
• Distribution: Re-distributes the euclidean triggers (Fill) towards either end of the sequence
• Klee: 0-64 Hex
  • The Klee is a 6step shift register
  • Each stage offsets the trigger count from the euclidean sequencer by 1 relative to the previous stage
  • This control selects which shift register stages will be output
  • The selected outputs are then summed and wrapped by the count max value and sent on to the Scale Scanner
• Matrix: Sets the 8:4 matrix
  • The note output of the Scale section is passed through an 8 stage analogue style shift register
  • The outputs of the register are connected to 8 Matrix inputs
  • This control decides the internal routing of the matrix which has four outputs
• Delays_On: Switches the polyphonic output delays On/Off
  • The delays offset outputs 2, 3 and 4 by the time value chosen in the adjacent menu
  • Strums, arpeggios etc.
• Delays_Time: 64n – 1nd
  • Sets the time value by which outputs 2, 3 and 4 will be offset
• Velocity: Sets the velocity value of the note output
• Note_Duration: Sets the Duration as a %age of the Clock time value
  • Out_1
  • Blue = On
