The Arcade Series is a collection of MaxforLive Generative Sequencers that can be used on their own or integrated with Ableton Live supported controllers. Designed and created by Ableton Certified Trainer Mark Towers each device takes it’s inspiration from the hours spent in front of flickering screens down the local Arcade.

ARCADE SERIES ULTIMATE CONTENTS:

ARKANOID

Arkanoid is a rotating melodic sequencer inspired by the classic arcade game. The grid interface is the primary way to interact with Arkanoid. Both control surface 8×8 button grids and mouse clicks can be used to control the UI.

The main 8×7 grid represents a walled space in which up to 4 balls can bounce around in diagonal patterns. To start a ball moving, first select one of the 4 sequencers using the numbered selected panel or with a control surface’s ‘scene launch buttons’, then trigger one of the bottom row buttons on a control surface or by using the mouse. Once started, balls will follow a diagonal pattern which will result in them gradually going out of phase until returning to their starting point. To trigger additional sequencers select the next numbered engine and repeat the process.

Notes are triggered when moving balls cross activated cells. Cells can be activated by clicking on them with control surface pads/mouse clicks. The pitch of activated notes are automatically laid out via the ‘note grid’ mode (see sequencer engine). Notes can be accentuated by initiating ‘accent edit’ in the ‘global controls’ to the right of the device or by holding shift and clicking a cell.

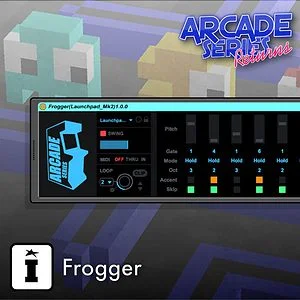

FROGGER

Frogger is an 8-step gate sequencer inspired by the classic video game and electronic gate sequencers. Via the mouse or control surface you set the pitch/octave for each step. When the sequence lands on the step the note is triggered. All pitch values conform to the globally selected scale with individual octave control per step.

Use the Gate Length to set the duration of counts for each step (1-8). Each step will count to the specified amount before moving on to the next step observing the set mode.

HOLD – A note is held for the duration of the specified gate length.

REPEAT – A note is triggered for every count of the specified gate length.

SINGLE – A note is triggered for the first count of the step, remaining counts are treated as rests.

REST – A rest is triggered for the specified gate length

GHOSTS

Ghosts is a random looping melodic sequencer inspired by the classic arcade game PacMan (but it hasn’t got the hero in it!)

The 8×8 grid represents a maze in which the ghosts will move around. Whenever a ghost reaches a junction, they make a random decision of which way to go. When ghosts land on a yellow step, a note is triggered. When they land on a blue step a speed boost / reduction is triggered for a specified amount of steps. Landing on an orange step triggers and accentuated note.

Up to four ghosts can run simultaneously and each have their own dedicated controls such as speed and note information.

SPACE INVADERS

The Arcade Series Returns concludes with Space Invaders, a rotating pulse generator designed specifically for triggering drum machines.

Independent patterns/rows of ‘Invaders’ are set up in the separate invader engines to the right. These patterns can be static or moving from left to right and have their own parameters which effect note generation.

Lazers are triggered by the ships at the bottom of the grid. Once turned on, each ship will fire a single lazer at a user specified rate (in the settings panel). When a laser hits an invader, a note is triggered. The lazer cycle is repeated until the ship is turned off. Clicking anywhere on the 8×8 grid starts/re-starts a lazer to fire from that location.

USER GUIDE DOWNLOADS: GHOSTS / FROGGER / ARKANOID / SPACE INVADERS / ASTEROIDS / POLYPIN / TETRIQ
