Mixing a Full Track with Console 40 — A Real Session Walkthrough

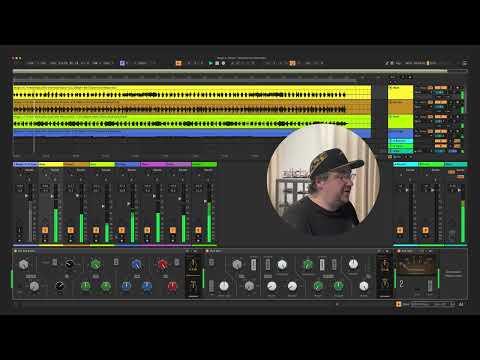

Watch MONOMONO’s developer mix a complete song from scratch using Console 40, an SSL 4000-inspired Max for Live suite built component by component inside Ableton Live.

Most plugin demos fall into one of two camps: someone drops a processor on a track and it gets louder, or a world-class engineer works magic you can’t replicate. This walkthrough takes a different route. The developer behind Console 40 by MONOMONO sits down with a raw multi-track session and mixes it from scratch, using only the devices in the suite — no shortcuts, no sleight of hand.

What Console 40 Does

Console 40 is a Max for Live suite modelled on the SSL 4000E and 4000G large-format consoles, built by tracing the original circuit schematics component by component. Every capacitor, diode, and resistor is accounted for, meaning the suite replicates the actual voltage behaviour of the hardware rather than approximating its curve shapes. One direct consequence is that component-level tolerances are introduced via serial numbers, so no two channel instances sound exactly the same — which is precisely how hardware consoles behave.

The suite is structured around several dedicated devices. The 424 EQ covers full-range filtering with resonant high-pass and low-pass controls, shelving, and peak bands with a live spectrum display. The 420 Pink EQ follows an alternative console topology with switchable mid-range bands and a wider gain range of plus or minus 20 dB. The dynamics channel combines a compressor, an expander switchable to gate mode, sidechain filters that can be routed independently to the expander, automatic makeup gain, and a parallel blend control. The 442 colour device adds a bias control driving asymmetric VCA distortion with even harmonics, plus a diode clipper acting as a true peak limiter at minus 0.3 dBFS.

The mid-side monitoring dial available across channels lets you check stereo content at any point in the chain — a detail that proves genuinely useful when working with stems that carry almost no side information.

What the Walkthrough Covers

• Gain staging: pulling channels down to create headroom and setting output level to match a familiar monitoring reference before any processing begins
• Fader balance pass: rough level balancing across all stems to establish a starting stereo picture
• Bass and drums EQ: using the 424 filter channel to allocate low-frequency space between kick and bass, with the resonant filter used to create a controlled bump around 100 Hz
• Drum compression: slow attack to preserve transients, fast release to restore punch, with automatic makeup gain compensating in the circuit rather than on a separate control
• Expander in practice: tightening drum bleed between hits while leaving room for reverb to add width afterwards
• 442 colour device: adding even-harmonic saturation via bias and engaging the clipper to contain peaks without brickwall limiting artefacts
• Percussion with 420 Pink EQ: using the broader gain range and alternative filter topology to address harshness and bring the track into balance
• Strings and piano: compression applied to even out dynamics where the groove is not at risk, with more aggressive ratios used on sustained harmonic parts

How to Follow Along

• Set your monitoring level to a fixed reference before you start — the walkthrough uses minus 36 dBFS on the interface output as a consistent listening level
• Pull all channel faders down by around 10 dB first to give yourself headroom to work up from
• Think about how much low end, mid-range, and top end the overall mix needs before committing to per-track EQ decisions — then assign frequency responsibilities to individual instruments
• On the dynamics channel, use RMS metering on the threshold control to set your compression starting point before adjusting attack and release
• Use the expander’s sidechain filter routing to prevent low-frequency content from triggering gain reduction on frequencies where you want the expander to stay inactive
• Engage the 442 clipper on channels hitting above 0 dBFS before reaching the bus — the diode character adds density at the point of limiting rather than flat attenuation

Why It Matters

Console 40 is not a character plugin in the usual sense. The 4000G and E consoles were engineered to be transparent, and the suite reflects that — the colour comes from the 442 device deliberately, not from the signal path by default. What the suite actually provides is a coherent console workflow inside Ableton Live: a consistent set of tools across every channel that share the same circuit topology, the same gain structure, and the same physical variation that hardware engineers have worked with for decades. For producers who want to move beyond stock Ableton processing without reaching for a third-party DAW or an outboard rack, Console 40 makes that argument in a single session.
